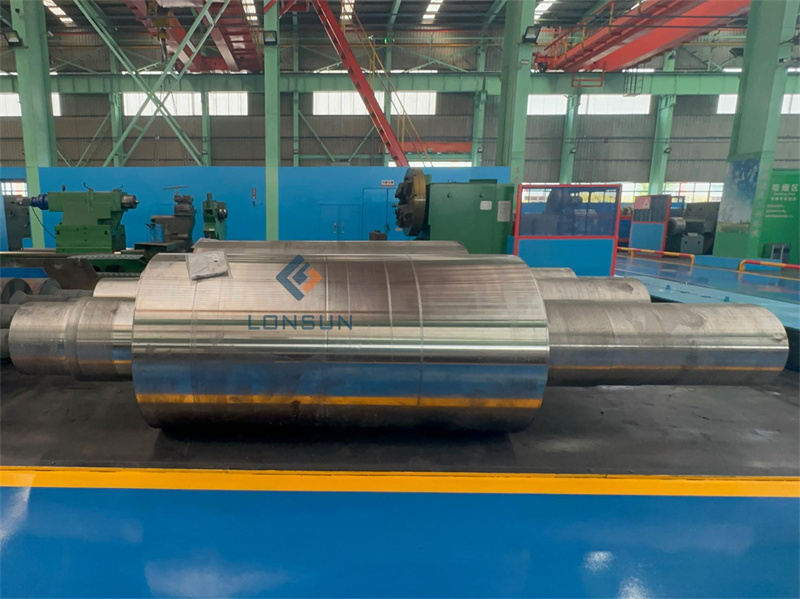

Adamite rolls and rings are engineered for high-performance rolling applications, offering an excellent balance of wear resistance, toughness, and resistance to fire-cracking. This grade features a controlled carbon content combined with varying additions of Nickel, Chromium, and Molybdenum to achieve enhanced hardness and reliable mechanical performance. Products can be manufactured by both Static Monoblock conventional casting and Horizontal Centrifugal Casting methods according to different mill requirements.
Chemical Composition and Physical Properties
| Symbol | C | Si | Mn | Cr | Ni | Mo | Barrel Hardness HS |
Roll Neck Hardness HS |
Tensile Strength MPa |
| AD140I | 1.30-1.50 | 0.30-0.60 | 0.70-1.10 | 0.80-1.20 | 0.50-1.20 | 0.20-0.60 | 35-50 | ≤48 | ≥500 |
| AD160I | 1.50-1.70 | 0.30-0.60 | 0.80-1.30 | 0.80-2.00 | ≥0.20 | 0.20-0.60 | 40-60 | ≤50 | ≥450 |
| AD180 | 1.70-1.90 | 0.30-0.80 | 0.60-1.10 | 0.80-1.50 | 0.50-2.00 | 0.20-0.60 | 45-60 | ≤50 | ≥350 |
| AD190 | 1.80-2.00 | 0.30-0.80 | 0.60-1.20 | 1.50-3.50 | 1.00-2.00 | 0.20-0.60 | 55-65 | ≤50 | ≥350 |
| AD200 | 1.90-2.10 | 0.30-0.80 | 0.80-1.20 | 0.60-2.00 | 0.60-2.50 | 0.20-0.80 | 50-65 | ≤50 | ≥350 |

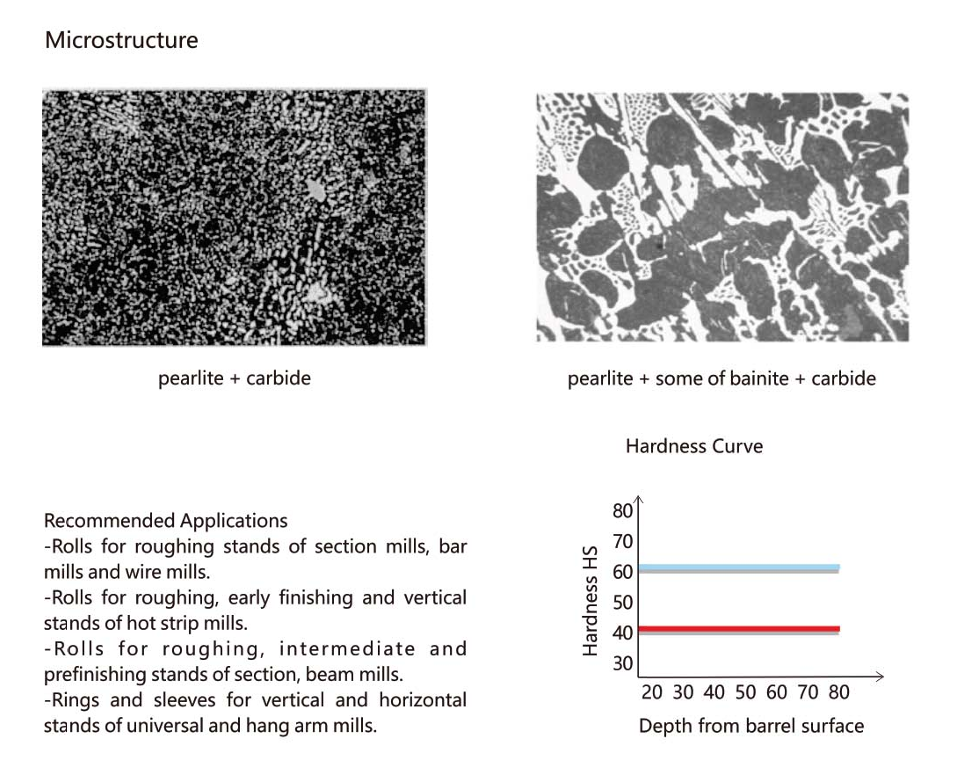

Recommended Applications
- Rolls for roughing stands of section mills, bar mills, and wire rod mills.
- Rolls for roughing, early finishing, and vertical stands of hot strip mills.
- Rolls for roughing, intermediate, and pre-finishing stands of section and beam mills.
- Rings and sleeves for vertical and horizontal stands of universal mills.
Product Features
- Excellent resistance to wear and thermal cracking.
- Stable hardness performance with reliable mechanical strength.
- Suitable for a wide range of rolling mill applications.
- Flexible manufacturing methods available to meet different operational requirements.
