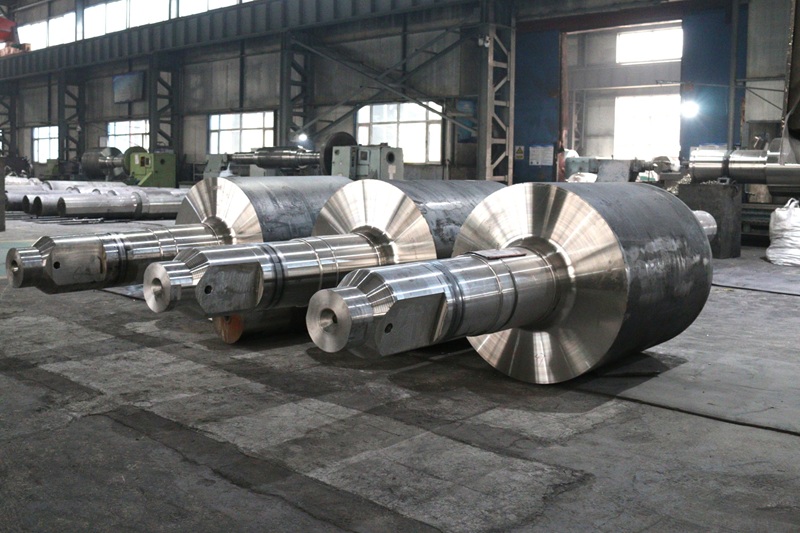

Enhanced ICDP rolls are developed based on conventional ICDP rolls with upgraded microstructure performance. The matrix mainly consists of bainitic and martensitic structures with Fe3C and MC carbides uniformly distributed throughout the material, together with fine free graphite evenly dispersed in the matrix.
The rolls are double tempered to minimize retained austenite and achieve an optimized hardness level together with balanced residual stress control. EN-ICDP rolls are especially suitable for applications requiring improved wear resistance, thermal stability, and longer campaign life under high-speed rolling conditions.
Chemical Composition
| Symbol | C | Si | Mn | Cr | Ni | Mo | V | W | Nb |
| EN-ICDP | 2.90-3.60 | 0.60-1.50 | 0.40-1.20 | 1.00-2.00 | 3.01-4.80 | 0.20-2.00 | 0.20-2.00 | 0.00-2.00 | 0.00-2.00 |
Physical Properties
| Symbol | Barrel Hardness | Roll Neck Hardness | Tensile Strength |
| EN-ICDP | 77-85 HS | 32-45 HS | ≥400 MPa |
Recommended Applications
- Hot strip finishing stands.
- Selected roughing and intermediate work roll positions.
- Applications requiring improved strip surface control.
- High-speed flat product production lines.
- Campaign life improvement projects.
Product Features
- Improved wear resistance compared with conventional ICDP rolls.
- Enhanced thermal stability and rolling consistency.
- Optimized carbide distribution and hardness retention.
- Suitable for demanding high-speed finishing applications.
- Reliable performance under long rolling campaign conditions.
